Economical Multi-lane Production from a Single Layflat Tube

Designed originally to maximise the full working width of the Harnden range of servo driven bag making machines, giving a more all round profitable output.
Extrusion 1 wide reel of film blown instead of several smaller.
Printing 1 reel means less time through printer.
Bag Making Less down time through fewer reel changes and more bags per cycle output.

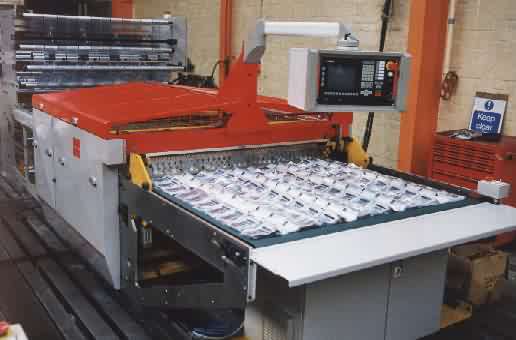

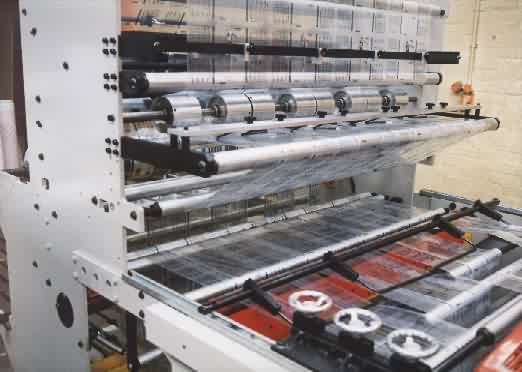

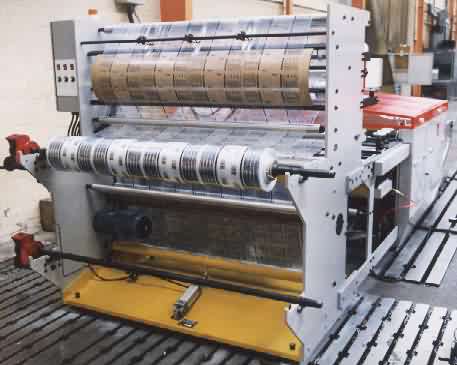

Illustrations show slit sealer with 3 sealing heads mounted on a Harnden PP1500S single track machine producing 8 lanes of captive flap bags at 230 cpm.
The Harnden Slit Sealer is adaptable and can be used in any continuous web fed process using heat sealable films from 6 micron - 100 micron thick including extruders - flexo presses, bag makers and slitter rewinders.
 - Adjustable Position Sealing Head
 - Pneumatic Retraction of Sealing Head to avoid burning during stops.
 - Individual Control for each sealing head enabling constant heat sealing conditions.
 - Up To Six Heads can be fitted.
 - Available Vertical Configuration as shown or horizontal.
Standard Working Widths: - 1000mm, 1250mm, 1500mm.  Special sizes and adaptations available on request.
The standard units are supplied with one sealing head with option for extra heads at additional cost.
Materials Handled LDPE, LLDPE, HDPE and Polypropylenes.
Performance 15 - 120 metres/min.
Power Requirements 240 volt single phase.
Pneumatic Requirement 30 psi.
