Inline Floating Unwind & Centre Folder

This Centre Folder Floating Unwind is mounted in line with the bag machine. Because of the design of the centre folder the web exits the folding frame in the same direction that it enters rather than the normal 90 degrees. This means that it can be used either as a centre folder or just as a floating unwind - without repositioning. As an option a loading jib can also be fitted.

 In-Line Centre Folder Floating Unwind fitted with Edge Guider

 Key Features

  • Pneumatic brake

  • 1500mm working width and 1000mm diameter

  • Optional electrical or hydraulic actuated web guider

  • Pneumatic mandrel

  • Optional loading jib

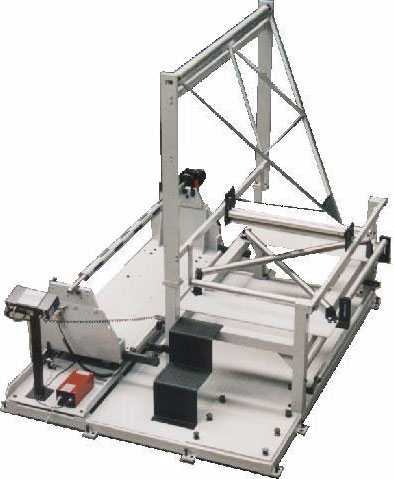

  This Picture shows the In-Line Centre folder floating unwind fitted with edge guider
